Arduino Relays

Saturday, March 7th, 2009

Yesterday evening I have build a small relays for switching high voltage lines with my Arduino. It uses the “Blink” example and switches on for 10 seconds then switches off for 10 seconds. I have used this document to get my work done.

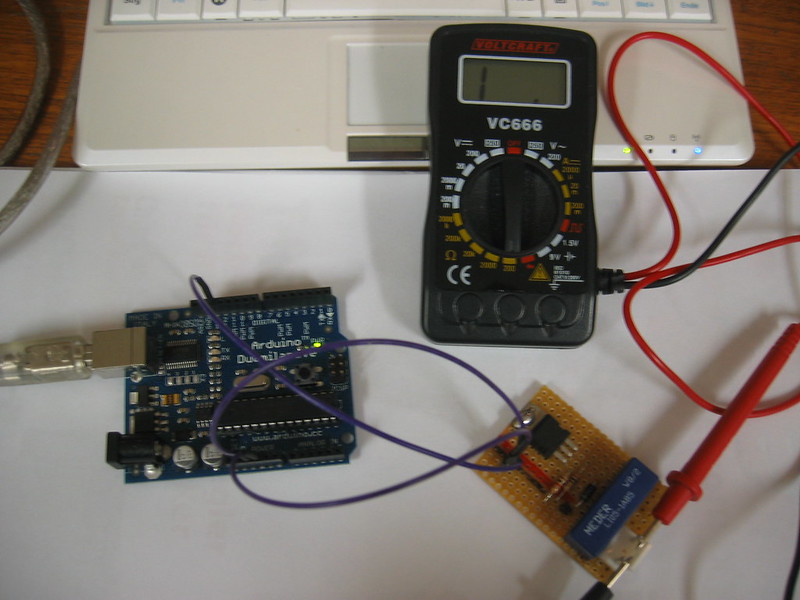

Arduino Relays off
Relays switched off.

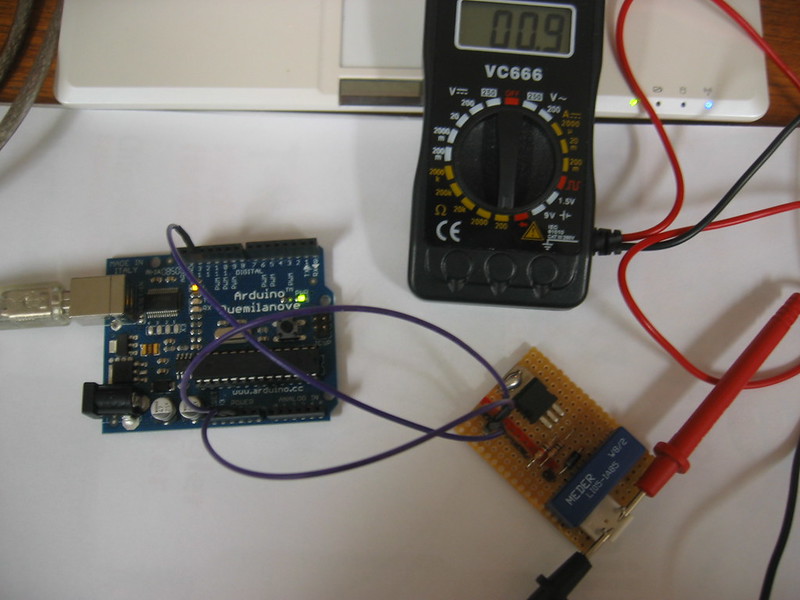

Arduino Relays on
Relays switched on.

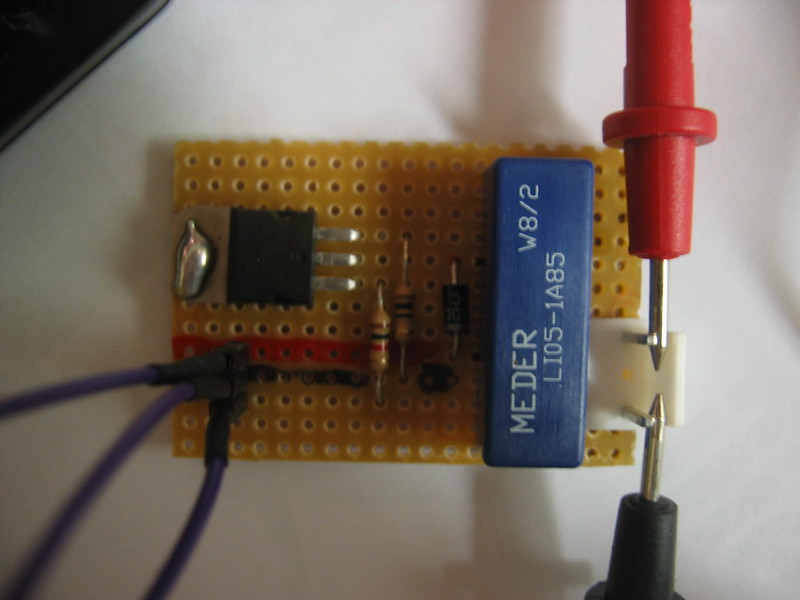

Zoomed view
